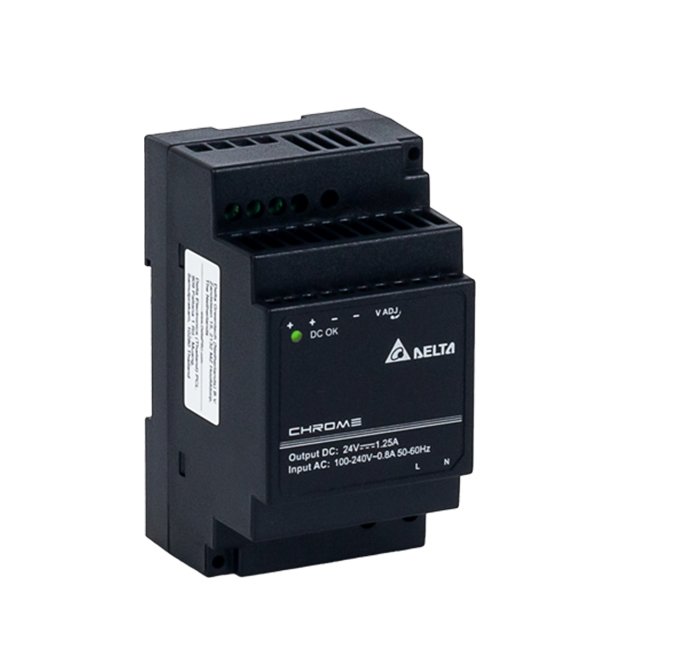

Description
| Output Voltage | 24 V |
| Output Voltage Range | 23.52-24.48 V |
| Output Current | 0-1.25 A |
| Output Power | 30 W |
| PARD (20 MHz) | < 100 mVpp |
| Hold-up Time | > 25 ms @ 115 VAC > 60 ms @ 230 VAC |
| Phase Input | Single Phase |
| Input Voltage Range | 90-264 VAC |
| Input Frequency | 47-63 Hz |
| Input Current | < 0.6 A @ 115 VAC < 0.2 A @ 230 VAC |
| Efficiency at 100% Load (At 25°C ambient temperature by vertical mounting orientation.) | > 87.0% @ 115 VAC > 87.0% @ 230 VAC |
| Max Inrush Current (Cold Start) | < 25 A @ 115 VAC < 50 A @ 230 VAC |
| Power Factor | Conform to EN 61000-3-2 |
| Leakage Current | < 0.25 mA @ 240 VAC |
| Case Cover / Chassis | Plastic |
| Dimensions (H × W × D) mm | 91 × 53 × 55.6 |
| Unit Weight | 0.14 |
| Cooling System | Convection |
| MTBF (as per Telcordia SR-332 (I/P: 115 VAC & 230 VAC, O/P: 100% load) for vertical mounting orientation.) | > 500,000 hrs |
| Operating Temperature | -25°C to +71°C |
| Storage Temperature | -25°C to +85°C |
| Operating Humidity | 5 to 90% RH (Non-Condensing) |
| Operating Altitude | 0 to 2,000 m (0 to 6,560 ft) |
