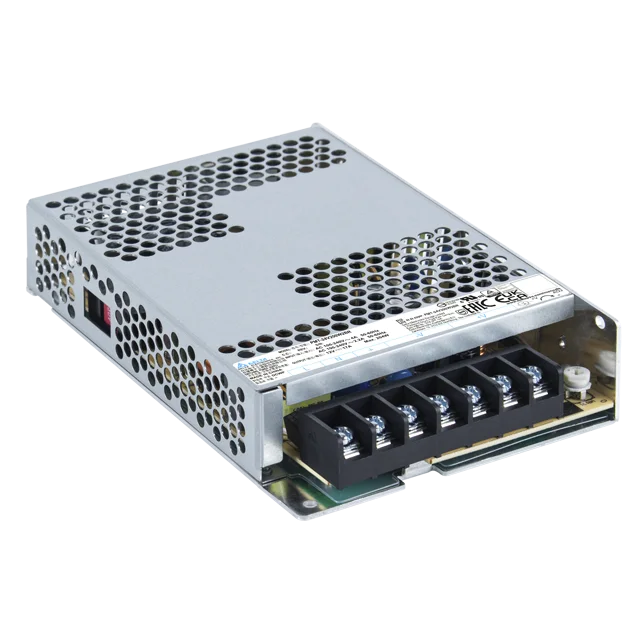

Description
| Output Voltage | 24 V |
| Output Voltage Range | 21.6-26.4V |
| Output Current | 8.8 A |
| Output Power | 211.2 W |
| PARD (20 MHz) | < 150 mVpp @ 0°C to 70°C, 450 mVpp typ. @ -30°C to 0°C |
| Hold-up Time | 30 ms typ @ 115 VAC 30 ms typ @ 230 VAC |
| Phase Input | Single Phase |
| Input Voltage Range | 90-264 VAC , 180-264 VAC (Selectable by Switch) |
| Input Frequency | 47-63 Hz |
| Input Current | 4.0 A typ @ 115 VAC 2.2 A typ @ 230 VAC |
| Efficiency at 100% Load (At 25°C ambient temperature by vertical mounting orientation.) | 90.0% typ @ 230 VAC |
| Max Inrush Current (Cold Start) | 60 A typ @ 230 VAC |
| Power Factor | NA |
| Leakage Current | < 0.5 mA @ 240 VAC |
| Case Cover / Chassis | SGCC / Aluminium |
| Dimensions (H × W × D) mm | 159 × 97 × 30 |
| Unit Weight | 0.42 kg |
| Cooling System | Convection |
| MTBF (as per Telcordia SR-332 (I/P: 115 VAC & 230 VAC, O/P: 100% load) for vertical mounting orientation.) | > 700,000 hrs |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 20 to 90% RH (Non-Condensing) |
| Operating Altitude | 0 to 5,000 m (0 to 16,400 ft) |
